Most Hyper-V checkpoint operation failed errors don’t come from the backup job itself. The backup finishes. The software reports success. Then the AVHDX that was supposed to merge back into the parent disk keeps growing, the VM slows down, and a disk alert fires a day later. Backup success and checkpoint cleanup are not the same success condition – that’s the problem this article addresses.
This is a recovery guide for environments where a Hyper-V checkpoint operation failed during or after backup, an AVHDX file isn’t merging, VSS errors are blocking backup checkpoints, or there is an AVHDX file but no checkpoint in Hyper-V Manager. It also covers the “chain of virtual hard disks is inaccessible” error and how to manually merge AVHDX files when automatic cleanup fails. Applies to Windows Server 2019, 2022, and 2025.
If you only have 5 minutes:
- AVHDX growing? → Check Events 19070 / 19080 / 19090 in Hyper-V-VMMS
- Hyper-V checkpoint operation failed? → Run
vssadmin list writerson the host - No checkpoint visible but AVHDX exists? → Verify the active disk chain before touching files
- Storage almost full? → Free space first, troubleshoot second
Quick Answer: What To Do First
If you’re dealing with a Hyper-V checkpoint operation failed error or an AVHDX file that’s still growing after backup:
- Do not delete AVHDX files manually – not yet.
- Check Event Viewer for events 19070, 19080, and 19090 (Hyper-V-VMMS).
- Run
vssadmin list writerson the host – confirm no writers are in a Failed state. - Open Hyper-V Manager and confirm whether a checkpoint is visible for this VM.
- Run
Get-VMHardDiskDriveandGet-VHDto map the full disk chain. - Confirm the storage volume has free space for the merge: at least the size of the AVHDX being merged, plus headroom.
The diagnostic path splits at step 4: visible checkpoint means the backup software left it behind; an AVHDX file but no checkpoint in Manager means a hidden recovery checkpoint, an active differencing disk, or a genuinely untracked file. All are fixable – the steps are different.

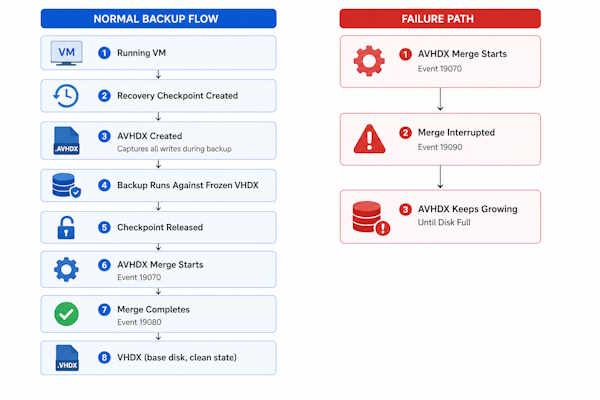

How Hyper-V Backup Checkpoints Create AVHDX Files
An AVHDX file is the differencing disk Hyper-V creates for a checkpoint. It stores only the blocks written after the checkpoint was taken, and every read that misses it falls back through ParentPath to the parent disk. When a backup job runs against a running VM, Hyper-V creates a recovery checkpoint to make the base VHDX consistent for export. All writes during the backup go to a new AVHDX differencing disk. When the backup finishes, Hyper-V deletes the recovery checkpoint and merges the AVHDX back into the parent VHDX.
That merge step runs as a background process after the checkpoint is released. The VM keeps running throughout. This is not the same as a manual checkpoint delete – the timing and state requirements are different.
A Hyper-V checkpoint operation failed error means the process broke somewhere in that chain: during checkpoint creation (VSS failure), during the backup itself (write errors, Replica conflict), or during post-backup merge cleanup (disk full, file lock, broken parent reference).
Checkpoint type changes how the checkpoint is taken, not the AVHDX mechanism. Production checkpoints use VSS inside a Windows guest (a file-system freeze on Linux) for a consistent snapshot without memory state. Standard checkpoints also save the VM’s memory and device state. Backup-created recovery checkpoints don’t appear in Hyper-V Manager, which is why an AVHDX can exist with no visible checkpoint. For VHDX architecture and checkpoint design, see Hyper-V Storage: VHDX, Fixed vs Dynamic, and Storage Spaces Explained.

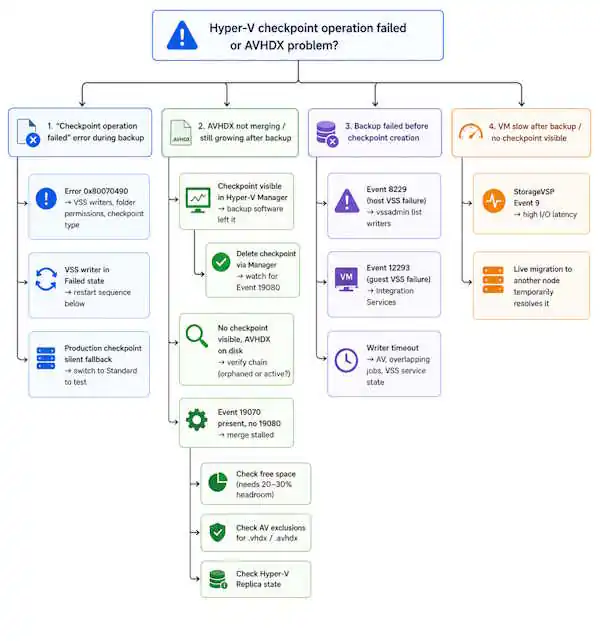

Hyper-V Checkpoint Operation Failed – Troubleshooting Flow
“Checkpoint operation failed” is a wrapper message. The useful part is which operation failed and the nested reason under it. Three operations produce it, and each has a different first check:
- Create: Could not create the checkpoint or a backup that fails at snapshot time. Start with VSS writers, the checkpoint type, and permissions on the VM folder.
- Apply: Failed to apply checkpoint. Every file the checkpoint references must still exist and be readable: the AVHDX/VHDX chain and the saved-state files. Check the chain before anything else.
- Delete or cleanup: the checkpoint won’t delete, or the AVHDX keeps growing after backup. This is a merge problem: free space, file locks, Replica state.
Failed to Apply Checkpoint
Applying a checkpoint reverts the VM to the disks and configuration stored with that checkpoint. If any of them is missing, moved, or unreadable, the apply fails. Map the checkpoint’s disks before retrying:
Get-VMSnapshot -VMName "VMName" | Select-Object Name, SnapshotType, CreationTime, ParentSnapshotName
# Disks referenced by one checkpoint
$cp = Get-VMSnapshot -VMName "VMName" -Name "CheckpointName"
Get-VHD -VMId $cp.VMId -SnapshotId $cp.Id | Select-Object Path, ParentPathIf a referenced path doesn’t exist, treat it as the inaccessible-chain case below, not as a retry problem. If the paths exist, check NTFS permissions for the VM account and free space on the volume, then retry the apply once.
Event ID Reference
Host-side events: Applications and Services Logs → Microsoft → Windows → Hyper-V-VMMS → Admin. StorageVSP events: Hyper-V-StorageVSP → Admin. VSS events: the Windows Application log, source VSS. Event IDs can differ slightly between Windows Server releases, so match on the message text as well: background disk merge has been started and has been interrupted are the strings to search for.
| Event ID | Source | Meaning | Action |
|---|---|---|---|
| 19070 | Hyper-V-VMMS | Merge started | Monitor – expect 19080 to follow |
| 19080 | Hyper-V-VMMS | Merge completed successfully | Healthy – no action |
| 19090 | Hyper-V-VMMS | Merge interrupted | Investigate immediately – disk, AV, Replica |
| 8229 | VSS (Application log) | A VSS writer rejected an event | Run vssadmin list writers |
| 12293 | VSS (Application log) | Error calling a VSS shadow copy provider | Run vssadmin list providers; check third-party providers |
| 9 | StorageVSP | An I/O request took too long to complete | Check storage path, CSV, patch level |
Event 19090 without a subsequent 19080 is an active storage problem, not a completed cleanup process. If you see 19070 followed by 19090 with no 19080 between them – the merge started and was interrupted. The AVHDX is still active and growing. Treat this as an incident, not a background task that will resolve itself.
Healthy merge sequence: 19070 → 19080. Problem sequence: 19070 → 19090 → no 19080.
Cannot Create the Checkpoint: Permissions, VSS, and Checkpoint Type
Error 0x80070490 means “Element not found.” In checkpoint context, Hyper-V couldn’t locate or access something it needed – a VSS writer, a folder path, or a permissions target. A Hyper-V checkpoint operation failed with this code usually leads to one of the three checks below, which also cover most other “cannot create the checkpoint” failures.
Check Folder Permissions
Hyper-V VMs run under a per-VM Virtual Machine account (NT VIRTUAL MACHINE\<VM-GUID>). If the VHDX storage folder was moved, copied, or had permissions reset, that account may have lost access.
# Get the VM's GUID
(Get-VM -Name "VMName").Id
# Check folder ACL
Get-Acl -Path "D:\Hyper-V\VMs\VMName" | Format-ListThe NT VIRTUAL MACHINE\<GUID> account needs access to the VM’s disk and checkpoint files. If it is missing from the folder named in the error, restore it on that folder only:
$vmId = (Get-VM -Name "VMName").Id.ToString()
$acl = Get-Acl "D:\Hyper-V\VMs\VMName"
$rule = New-Object System.Security.AccessControl.FileSystemAccessRule(
"NT VIRTUAL MACHINE\$vmId", "FullControl",
"ContainerInherit,ObjectInherit", "None", "Allow"
)
$acl.AddAccessRule($rule)
Set-Acl "D:\Hyper-V\VMs\VMName" $aclCheck VSS Writers
VSS failures are a common cause of Hyper-V checkpoint operation failed errors on production checkpoints and backup jobs. Run vssadmin list writers on the host first.
Healthy state:
Writer name: 'Hyper-V Writer'
Writer Id: {66841cd4-...}
State: [1] Stable
Last error: No errorFailed state:
Writer name: 'Hyper-V Writer'
Writer Id: {66841cd4-...}
State: [8] Failed
Last error: Retryable errorThe Microsoft Hyper-V VSS Writer runs inside vmms.exe, so restarting the VSS service alone doesn’t reset it. When no backup, checkpoint, or live migration is running, restart the Virtual Machine Management Service. Running VMs keep running, but management operations on the host are interrupted while it restarts:
Restart-Service vmms
vssadmin list writersIf the Hyper-V Writer is still failed, look for a backup agent that didn’t release the writer after a previous failed job, a third-party VSS provider (vssadmin list providers), or antivirus intercepting snapshot creation. Microsoft’s VSS event and error codes reference covers the full writer state machine.
Production Checkpoint vs. Standard Checkpoint
Production checkpoints use VSS inside a Windows guest and a file-system freeze inside a Linux guest, both through Integration Services. If that guest-side component is missing or broken, the production checkpoint fails, and the Hyper-V checkpoint operation failed error surfaces at the host level without clearly indicating the guest is the problem. With the checkpoint type set to Production, Hyper-V falls back to a standard checkpoint; with ProductionOnly, the operation fails instead. Backup jobs need the guest-consistent path, so they can fail even when manual checkpoints appear to work.
# Check current checkpoint type
Get-VM -Name "VMName" | Select-Object Name, CheckpointType
# Switch to Standard temporarily to isolate the guest as the cause
Set-VM -Name "VMName" -CheckpointType StandardIf the checkpoint succeeds after switching to Standard, the guest-side integration is the issue. Switch back to Production after fixing Integration Services – application-consistent backups matter for SQL, Exchange, and any VSS-aware workload. Microsoft’s Hyper-V checkpoint overview covers checkpoint type behavior and fallback conditions.
AVHDX Not Merging After Backup: Why AVHDX Files Keep Growing
This is the scenario most operators hit first, and it often follows a Hyper-V checkpoint operation failed event that was dismissed as temporary. The backup finishes. The software reports success. Nobody notices anything wrong for 12-24 hours – until disk alerts fire and the AVHDX is still there, still growing. AVHDX not merging after backup usually comes down to one of four causes.
What the Merge Needs
The merge process needs: free space on the target volume for the parent to absorb the AVHDX data, no file locks on the AVHDX, an intact parent VHDX chain, and no active Replica conflict.
Common causes:
- Antivirus real-time scanning
.vhdxand.avhdxfiles – intermittent locks interrupt merge and trigger Event 19090. The merge restarts, hits the lock again, stalls again. Microsoft’s recommended antivirus exclusions for Hyper-V hosts explicitly covers these paths. - Overlapping backup jobs – second job starts before the first AVHDX merges. Two levels in the chain. Each job adds another.
- Hyper-V Replica active – Hyper-V Replica has its own change tracking and can create its own recovery points. Bad sync state can hold the checkpoint open.
- Low free space – a dynamic parent grows as it absorbs the AVHDX data, and the merge stalls when the volume runs out.
Do Not Do This
Before any AVHDX work:
- Do not delete
.avhdxfiles from disk because they look old or unused. - Do not merge AVHDX files without verifying the full
ParentPathchain withGet-VHD. - Do not start a new backup job while a merge from the previous job is still pending.
- Do not resume Hyper-V Replica before the checkpoint chain is fully clean.
- Do not trust backup software success status as confirmation that merge completed.
An AVHDX file can be invisible in Hyper-V Manager and still be the active disk the VM is writing to. Deleting it makes the VM unbootable.
AVHDX File but No Checkpoint Appears in Hyper-V Manager
An AVHDX file but no checkpoint in Hyper-V Manager does not mean the file is orphaned. There are three different explanations, and only the last one makes the file safe to remove:
- A recovery checkpoint left by backup software. Recovery checkpoints aren’t shown in Hyper-V Manager, but
Get-VMSnapshotlists them withSnapshotTypeRecovery. Microsoft documents this in You can’t delete a recovery checkpoint for a virtual machine. - The active differencing disk. After a failed merge, the VM may still be writing to the AVHDX. It looks abandoned in Explorer and is the most important file in the folder.
- A genuinely untracked file, often called an orphaned AVHDX: on disk, but not referenced by the VM, any checkpoint, or the active chain.
# Lists Standard, Production, and Recovery checkpoints, including ones Manager hides
Get-VMSnapshot -VMName "VMName" | Select-Object Name, SnapshotType, CreationTimeA leftover recovery checkpoint is normally removed through the backup product’s own cleanup, or with Remove-VMSnapshot once you’ve confirmed no backup job is running. Removing it starts a merge, so watch for 19070 and the completion event, and check free space first.
Visible Checkpoint That Won’t Delete
A Hyper-V checkpoint that won’t delete from Manager is usually stuck waiting on a stalled merge – same root causes as above: AV, disk space, Replica. A Hyper-V checkpoint operation failed error at delete time is usually Event 19090 territory. Delete via Manager and watch for Event 19080.
Untracked (orphaned) AVHDX files are different. They exist on disk but are no longer referenced by Hyper-V. They won’t appear in Manager or Get-VMSnapshot. They consume space indefinitely.
Confirm Whether an AVHDX Is Really Untracked
Do not classify an AVHDX as orphaned based on Hyper-V Manager visibility alone. Verify against all four references before drawing a conclusion:
# 1. Active disk attached to VM
(Get-VMHardDiskDrive -VMName "VMName").Path
# 2. Full VHD chain (follow ParentPath from attached disk)
Get-VHD -Path "<active disk path>" | Select-Object Path, ParentPath
# 3. All tracked snapshots
Get-VMSnapshot -VMName "VMName" | ForEach-Object {
Get-VHD -VMId $_.VMId -SnapshotId $_.Id
} | Select-Object Path
# 4. All AVHDX files on disk
Get-ChildItem -Path "D:\Hyper-V\VMs\VMName" -Filter "*.avhdx"An AVHDX is orphaned only if it does not appear in results 1-3 but does appear in the file system listing (result 4).
Safe Removal Sequence
- Power off the VM.
- Confirm the file doesn’t appear in the active chain, snapshot list, or
Get-VHDoutput. - Move the file to a quarantine folder – do not delete yet.
- Start the VM and confirm it boots cleanly.
- Let the VM run through one backup cycle.
- Delete from quarantine only after confirming normal operation.
Map the VHDX/AVHDX Chain
Start from the disk currently attached to the VM – not from a file system listing.
# Get the active disk path attached to the VM
$disk = (Get-VMHardDiskDrive -VMName "VMName").Path
Get-VHD -Path $disk | Select-Object Path, ParentPath, VhdTypeRead the output:
- Attached disk is
.avhdx→ VM is running from a differencing disk. The parent is inParentPath. ParentPathpoints to another.avhdx→ chain has multiple levels. Follow each one.ParentPathis empty andVhdTypeis Dynamic or Fixed → you’ve reached the base VHDX.
Walk the chain manually:
# Follow each level
Get-VHD -Path "D:\...\VMName_D0B1.avhdx" | Select-Object Path, ParentPath, VhdType
Get-VHD -Path "D:\...\VMName_A3C2.avhdx" | Select-Object Path, ParentPath, VhdType
# Example chain output:
# Path : D:\...\VMName_D0B1.avhdx (newest, attached to VM)
# ParentPath : D:\...\VMName_A3C2.avhdx
#
# Path : D:\...\VMName_A3C2.avhdx
# ParentPath : D:\...\VMName.vhdx (base disk)Merge order: VMName_D0B1.avhdx into VMName_A3C2.avhdx first, then VMName_A3C2.avhdx into VMName.vhdx. Always newest child first.
“The Chain of Virtual Hard Disks Is Inaccessible” in Hyper-V
Hyper-V reports this error, and the related The chain of virtual hard disks is corrupted, when it can’t open every disk from the attached AVHDX down to the base VHDX. One unreadable or missing member breaks the whole chain, so the VM won’t start, a checkpoint won’t apply, and a merge can’t run.
Typical causes: a parent VHDX or AVHDX was moved, renamed, or restored to a different path; an AVHDX in the middle of the chain was deleted or quarantined; files were copied manually and the child still points at the old parent path; the VM account lost access to one member; or the volume holding a member is offline.
- Start from the attached disk:
(Get-VMHardDiskDrive -VMName "VMName").Path. - Walk every level: run
Get-VHDon each file and record itsParentPath, as in the chain map above. Note the first level whereGet-VHDerrors. - Check each parent exists:
Test-Path "<ParentPath>". AFalseresult is the break point. - Check access: confirm the
NT VIRTUAL MACHINE\<VM-GUID>account can read the file at the break point. - If the same parent file was only moved: point the child back at it with
Set-VHD -Path "<child.avhdx>" -ParentPath "<new parent path>", then re-runGet-VHD. Don’t use this to attach a different disk as the parent. - If a parent is missing: stop. Don’t merge the remaining files. Restore the missing file from backup or storage history, or restore the VM.
A merge only works when every chain member is present and consistent. Merging around a missing parent produces a disk that looks valid and holds the wrong data.
How to Manually Merge AVHDX Files in Hyper-V
Manual merge is a recovery step for when Hyper-V’s own cleanup failed: the checkpoint is gone or unremovable, but the VM still runs on an AVHDX chain. Hyper-V merge AVHDX work always goes child into parent, one level at a time, starting from the chain map above. Use Merge-VHD or the Edit Disk Wizard, never a file picked from an Explorer listing.
Pre-Merge Safety Checklist
Before merging any AVHDX file:
- Verified backup exists – not just “backup ran,” but restore tested
- Free space on the volume at least equal to the AVHDX data being merged, plus headroom
- Hyper-V Replica paused or disabled
- AV exclusions confirmed for
.vhdx/.avhdxand the VM storage folder - No backup job scheduled during the merge window
- Full disk chain verified with
Get-VHD– no missing or broken ParentPath entries - VM state confirmed – running or powered off – before choosing merge method
Merge VHDX and AVHDX Files Safely
Power off the VM before manual merge work. The VM can run while Hyper-V handles a normal checkpoint delete – but manual recovery steps are safer offline. Do not assume shutdown automatically starts a merge. Verify chain state with Get-VHD first.
Via Edit Disk Wizard: Hyper-V Manager → Edit Disk → select the newest AVHDX → Merge → Into parent disk. Repeat per level toward the base VHDX.
Via PowerShell:
# Merge newest child into its direct parent
Merge-VHD -Path "D:\...\VMName_D0B1.avhdx" -DestinationPath "D:\...\VMName_A3C2.avhdx"Watch Event Viewer for 19070 (merge started) → 19080 (merge completed). If 19090 fires instead – stop. Check free space and file locks before retrying.
When NOT To Merge
ParentPathinGet-VHDoutput points to a file that doesn’t existGet-VHDreturns an error on any disk in the chain – broken chain- Storage volume is degraded or read-only
- Hyper-V Replica is mid-synchronization
- You don’t have a verified backup
A broken chain cannot be merged into a healthy disk. At that point, restore from backup is the correct path. Attempting a merge on a broken chain produces a corrupt base VHDX.
Long Checkpoint Chains and VM Performance
A chain of 5+ AVHDXs doesn’t just take longer to merge. Every read operation has to traverse the entire chain to find the current version of each sector. On spinning disk this is measurable under moderate I/O. On NVMe it’s less severe, but still present.
Merge time scales with the amount of data written since each checkpoint, the storage speed, and the chain depth, not just the size of the newest AVHDX. A lightly used VM on fast storage can merge in minutes. A heavily written chain on slow storage can take hours. Multi-level chains add a merge per level, so plan the work as a maintenance window rather than estimating it from one file size.
If Get-VMSnapshot returns 3+ entries for a VM that shouldn’t have manual checkpoints, investigate the backup job before the next window.
Common Real-World Scenarios
Scenario 1 – Backup completed, AVHDX still growing 4 hours later
Check Event Viewer for Event 19070. If present with no 19080 – merge stalled. Check free space first, then AV exclusions, then Replica state. If 19070 never appeared, the backup software may not have released the checkpoint cleanly. Check the backup job’s post-job cleanup log.
Scenario 2 – No checkpoint visible in Manager, AVHDX on disk
Run the four-query check before touching anything. Confirm whether it’s truly orphaned or part of the active chain. If confirmed orphaned: quarantine first, boot test, then delete.
Scenario 3 – Disk filled overnight, VM unresponsive
AVHDX grew until the volume hit 100%. VM writes are failing – that’s why the VM is unresponsive. Priority: free space on the volume first, then assess VM state. If the VM entered a saved state due to storage failure, it may resume cleanly once space is available. If the VM won’t start after storage is restored, work through the Hyper-V VM won’t start diagnostic workflow before attempting another merge.
Scenario 4 – Hyper-V backup failed VSS, Hyper-V checkpoint operation failed immediately
No AVHDX was created. Check Event 8229 on the host. Run vssadmin list writers. If the Hyper-V Writer is in a Failed state, run the VSS restart sequence above. If it fails again, check for an active backup agent from another solution holding a writer lock.
Clustered VMs, CSV, and Backup Checkpoints
On clustered hosts, backup checkpoints involve the node that owns the VM and the cluster’s CSV snapshot coordination. If a VM migrates between nodes mid-backup – live migration or failover – the checkpoint process can be interrupted, producing exactly the AVHDX-without-merge pattern this article covers.
CSV redirected access adds another variable. During some backup operations, CSV I/O switches from direct mode to redirected mode through another node. On a loaded cluster, this compounds I/O latency and can trigger the StorageVSP Event 9 scenario. For live migration failures and CSV ownership issues that surface during or after backup, see the Hyper-V live migration failed guide.
- Confirm the VM owner node – run recovery steps from that node only.
- Note the CSV owner node for the volume holding the VM’s disks, so you can correlate events from both nodes.
- Check Hyper-V Replica state – pause Replica before any manual merge.
- Do not manually merge AVHDX files while the VM is HA-configured and actively running without first draining the node.
- After merge completes, verify Replica resumes cleanly before the next backup window.
For quorum, CSV ownership, and live migration behavior under load, see Hyper-V Failover Clustering Explained: Quorum, CSV, and Live Migration.
StorageVSP Event 9 After Backup
StorageVSP Event 9 is frustrating because the backup job finished successfully and nothing looks obviously wrong until VM performance degrades 10-30 minutes later.
What you’ll see:
- Backup reports success
- VM becomes noticeably slower after the backup window
- High disk latency in perfmon or Resource Monitor
- Live migration to another cluster node temporarily resolves the slowness
- Event 9 in
Hyper-V-StorageVSP > Admin
Event Viewer path: Applications and Services Logs > Microsoft > Windows > Hyper-V-StorageVSP > Admin
Event 9 itself only records that an I/O request for a VM’s virtual disk took longer than expected to complete. It names the delay, not the cause. Veeam community forum threads describe a recurring pattern on Windows Server 2019 and later hosts: VMs slow down after backup, Event 9 appears, and live migrating the VM clears the slowness until the next backup. Microsoft hasn’t published a single root cause for that pattern, so treat live migration as a symptom test, not a fix.
Immediate response: Live migrate the VM to confirm the pattern and restore performance. Keep hosts on current cumulative updates and read the release notes for storage and Hyper-V fixes.
If the pattern repeats after patching, collect the following before escalating to Microsoft or your backup vendor:
StorageVSP Event 9 – collect before escalation:
- Event 9 timestamps from StorageVSP Admin log
- VM name and host name at time of event
- Backup job start/end time
- CSV owner node at time of backup
- Hyper-V Replica state (enabled, suspended, error)
- Current CU level:
Get-HotFix | Sort-Object InstalledOn -Descending | Select-Object -First 10 - Whether live migration clears the slowness
- Backup filter driver version (from backup vendor’s agent)
Treat it as a storage-path issue first: CSV redirected I/O mode, Replica state, host patch level, storage latency, and backup filter drivers. If those are clean, escalate with the data above.
Prevention
| Issue | Prevention measure |
|---|---|
| Orphaned AVHDX | Monitor for Event 19080 post-backup – not just backup software completion status |
| Merge failure | Monitor free space on VHDX volumes; alert well before a merge could run out of room |
| Hyper-V backup failed VSS | Exclude .vhd, .vhdx, .avhdx from AV real-time scanning; monitor writer state weekly |
| StorageVSP Event 9 | Keep hosts on current CUs; review CU release notes for StorageVSP fixes |
| Checkpoint chain growth | Alert on AVHDX files older than 24 hours; limit concurrent backup jobs per host |
| Replica + checkpoint conflict | Pause Replica before manual checkpoint operations; verify Replica health before backup windows |
The single highest-impact step: configure monitoring to verify Event 19080 fires after every backup job. Most backup software doesn’t check this. A Hyper-V checkpoint operation failed or stalled merge gets discovered by disk alerts – not merge failure alerts – in most environments.
Weekly Hyper-V checkpoint health checklist:
- No AVHDX files older than 24 hours on any host
- No failed VSS writers (
vssadmin list writers) - All VHDX volumes above your free-space alert threshold
- No stuck checkpoints visible in Hyper-V Manager
- Hyper-V Replica in healthy state
- Current cumulative update installed on all hosts
FAQ
Why are my AVHDX files not merging after backup?
The usual causes: antivirus locking the AVHDX during real-time scanning, not enough free space for the merge, an overlapping backup job, or Hyper-V Replica blocking the merge. Check Event 19070 in Hyper-V-VMMS logs – if merge started but Event 19080 never appeared, one of those four causes is likely.
What causes Hyper-V checkpoint operation failed?
Usually one of three things: a VSS writer in a failed state, missing folder permissions for the VM’s Virtual Machine account on the VHDX storage path, or a production checkpoint failing because Integration Services aren’t installed or current in the guest. Run vssadmin list writers first – that rules out VSS in under a minute.
How do I fix 0x80070490 element not found in Hyper-V?
Error 0x80070490 in checkpoint context means Hyper-V couldn’t locate a required component – typically a VSS writer or the VM’s VHDX folder ACL. Run vssadmin list writers, then check NTFS permissions on the VHDX storage folder for the NT VIRTUAL MACHINE\<VM-GUID> account. If both are clean, check whether checkpoint type is set to Production and whether the guest supports VSS.
How do I merge AVHDX files manually in Hyper-V?
Work from newest child to base VHDX – never randomly. Run Get-VHD on each file to map the ParentPath chain. Power off the VM. Confirm free space. Pause Replica. Then use Merge-VHD or the Edit Disk Wizard, one level at a time. Never merge from a file system listing – always verify the chain with Get-VMHardDiskDrive first.
How do I delete a stuck or orphaned checkpoint?
If visible in Hyper-V Manager – right-click → Delete Checkpoint, then watch for Event 19080. If a Hyper-V checkpoint operation failed during delete, check Event 19090 and free space. If orphaned (on disk, not visible in Manager), run the four-query verification: Get-VMHardDiskDrive, Get-VHD chain, Get-VMSnapshot, and file system listing. Only after confirming it’s not referenced anywhere: power off the VM, move the file to quarantine, boot the VM, confirm normal operation, then delete.
Why is my VM disk growing after every backup?
The backup is creating a recovery checkpoint and the AVHDX isn’t merging post-job. Either the merge is stalling (check Event 19090) or the backup software isn’t releasing the checkpoint cleanly. Check AV exclusions and free space first, then review whether backup jobs are overlapping.
Can antivirus block checkpoint merges?
Yes. Missing exclusions are an easy Hyper-V host configuration gap to overlook. Real-time AV scanning .vhdx and .avhdx extensions locks the file intermittently, interrupts the merge, triggers Event 19090, and the merge restarts in a loop. Exclude Hyper-V storage folders and VM file extensions from real-time scanning. Microsoft’s antivirus exclusion guidance for Hyper-V hosts covers exactly which paths to exclude.
How long should an AVHDX merge take?
Proportional to data written since the checkpoint was created, disk type, and chain depth. A lightly-used VM might merge in minutes. A heavily written VM on slow storage can take hours, and each chain level adds another merge. Judge progress by events, not elapsed time: a 19090 interruption, or no completion event long after the AVHDX stopped shrinking, means it has stalled.
Is it safe to delete a recovery checkpoint?
Yes, if the backup it was created for has been verified and no backup job is running. A recovery checkpoint is temporary by design, and deleting it merges its AVHDX back into the parent rather than discarding data. If a failed backup left one behind, the checkpoint may not correspond to a usable backup state – deleting it is safe, but confirm backup validity before relying on it.
Why do I have an AVHDX file but no checkpoint in Hyper-V Manager?
Usually because the checkpoint is a recovery checkpoint created by backup software, which Hyper-V Manager doesn’t display. Run Get-VMSnapshot -VMName "VMName" and look for SnapshotType Recovery. If nothing is listed, check whether the AVHDX is the VM’s active disk with Get-VMHardDiskDrive. Only a file that is in neither list and outside the active chain is untracked.
How do I fix “The chain of virtual hard disks is inaccessible” in Hyper-V?
Start from the disk attached to the VM and run Get-VHD on each level, checking that every ParentPath exists and is readable by the VM account. If a parent was moved, point the child back at the same parent file with Set-VHD -ParentPath. If a parent is gone, stop: don’t merge, and restore the missing file or the VM from backup.
Do Hyper-V checkpoints count as backups?
No. A checkpoint captures VM state at a point in time but lives on the same storage as the VM. If that storage fails, both are lost. Checkpoints are a change-tracking mechanism, not a protection mechanism. For backup architecture and VSS strategy, see Hyper-V Backup: VSS, Checkpoints, and Restore Failures Explained.
Final Thoughts
Hyper-V checkpoint operation failed errors are almost always diagnosable – the event log gives you the exact failure point if you know which events to read. The harder problem is the AVHDX growth pattern, because it’s silent: the backup software reports success, the merge stalls in the background, and nothing alerts until a disk fills.
AV exclusions for Hyper-V storage paths are a cheap configuration gap to rule out early, because a scanner locking AVHDX files produces exactly the interrupted-merge pattern. A recurring Hyper-V checkpoint operation failed pattern after fixing VSS usually points back to AV or Replica state. For clustered hosts, add Replica health verification before backup windows, and CSV I/O mode monitoring during backup jobs if StorageVSP Event 9 is recurring.
Monitor for Event 19080, not just backup job completion.
Hyper-V Series
18 articles – Windows Server 2025 · Requirements · Licensing · Networking · Storage · USB Passthrough · TPM 2.0 · Backup · Replication · Clustering · Troubleshooting
